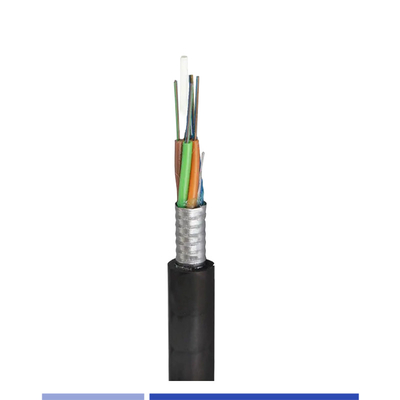

24 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable

Name: 24 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYTS-824
Availability: InStock

Marchio:	GoreLink
Numero di modello:	GL-GYTS-824
MOQ:	1000m
Tempo di consegna:	As per the order quantity
Condizioni di pagamento:	T/T,Paypal,Western Union,

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Place of Origin:

Made in China

Certificazione:

ISO,RoHS,REACH

Application:

Suitable for Duct,Aerial laying

Part Number:

GL-GYTS-824

Fiber Type:

Singlemode 9/125um

Cable Type:

Armored

Design:

Stranded loose tube design

Strength Member:

Metallic central strength member

Armor:

Corrugated Steel Tape armor

Maximum Capacity:

288 cores

Fiber Code:

GYTS

Operating temperature:

-40 ~+70

Outer Jacket:

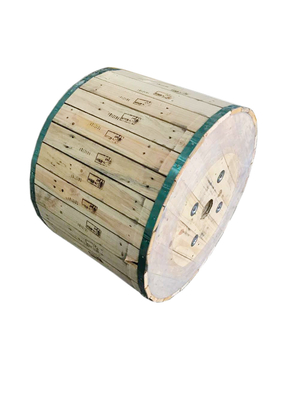

Packaging Details:

Wooden Drum/Spool+Carton

Descrizione di prodotto

Gorelink GYTS Outdoor Fiber optic cable are designed for outside plant applications and intended for use in communication network connects requiring cable to be installed within duct systems or lashed to aerial messenger wire structures.It is metallic strength member with corrugated steel tape armor protection.The stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications grade optical fiber.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

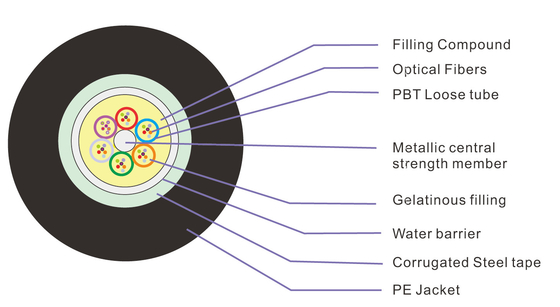

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	24 Core
Cable structure	Stranded Loose tube
Cable Armor	Corrugated Steel Tape Armor
Strength Member	Metallic
Cable Diameter	9.8-10.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

24 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable 0

Download Datasheet

Outdoor Armored Fiber Optic Cable- GYTS-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYTS-806	Outdoor Armored Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-808	Outdoor Armored Fiber Optic Cable,8 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-812	Outdoor Armored Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-824	Outdoor Armored Fiber Optic Cable,24 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-848	Outdoor Armored Fiber Optic Cable,48 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-896	Outdoor Armored Fiber Optic Cable,96 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-8144	Outdoor Armored Fiber Optic Cable,144 Fiber,Singlemode G652D,PE,Black,GYTS
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
